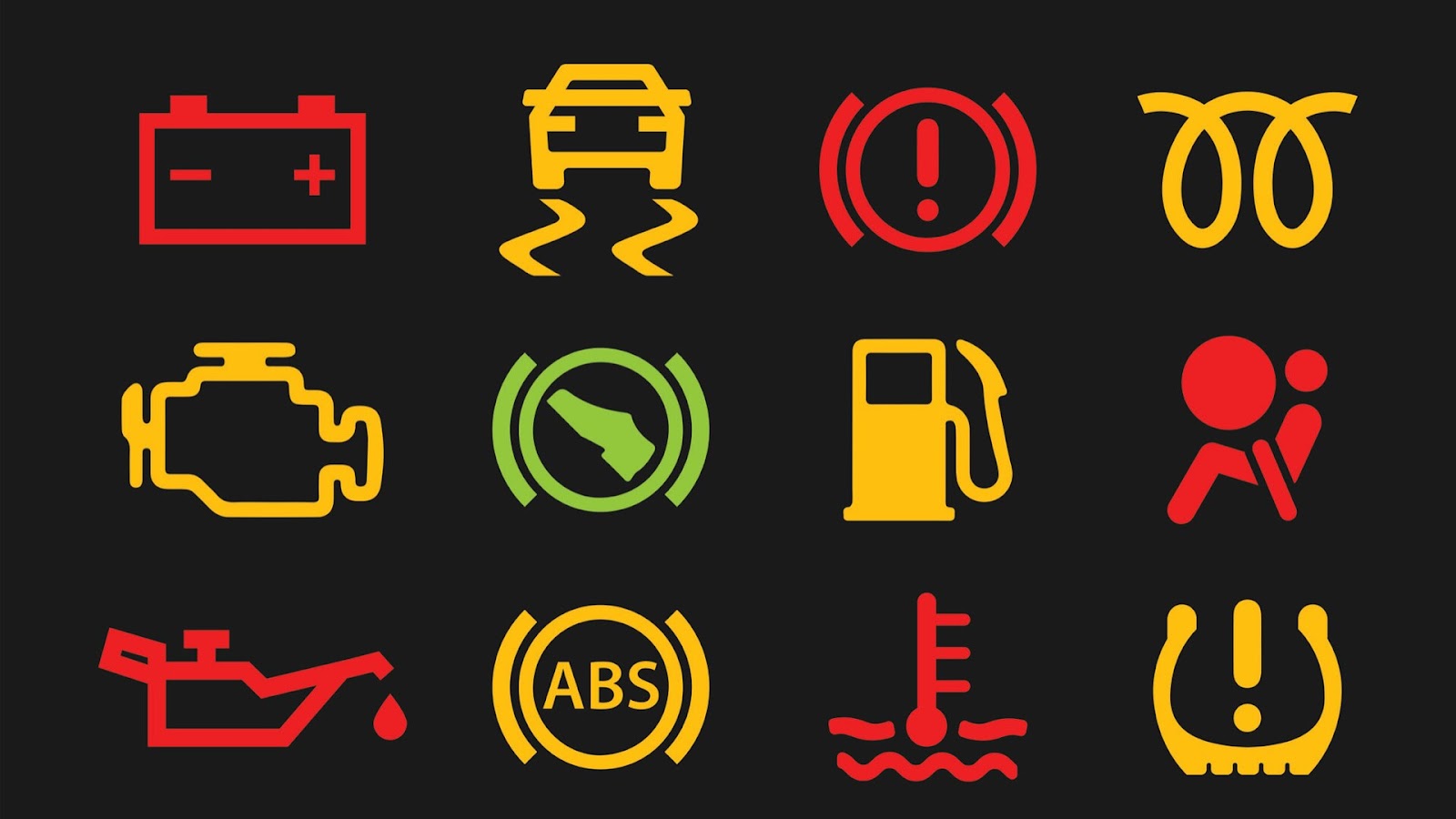

Your vehicle’s dashboard warning lights are its way of communicating—alerting you to maintenance needs, safety systems, or critical malfunctions. Ignoring them can lead to breakdowns, expensive repairs, or even safety risks. In this comprehensive guide, we’ll decode the 13 most common dashboard warning lights, explain what each symbol means, and outline exactly what to do when one illuminates.

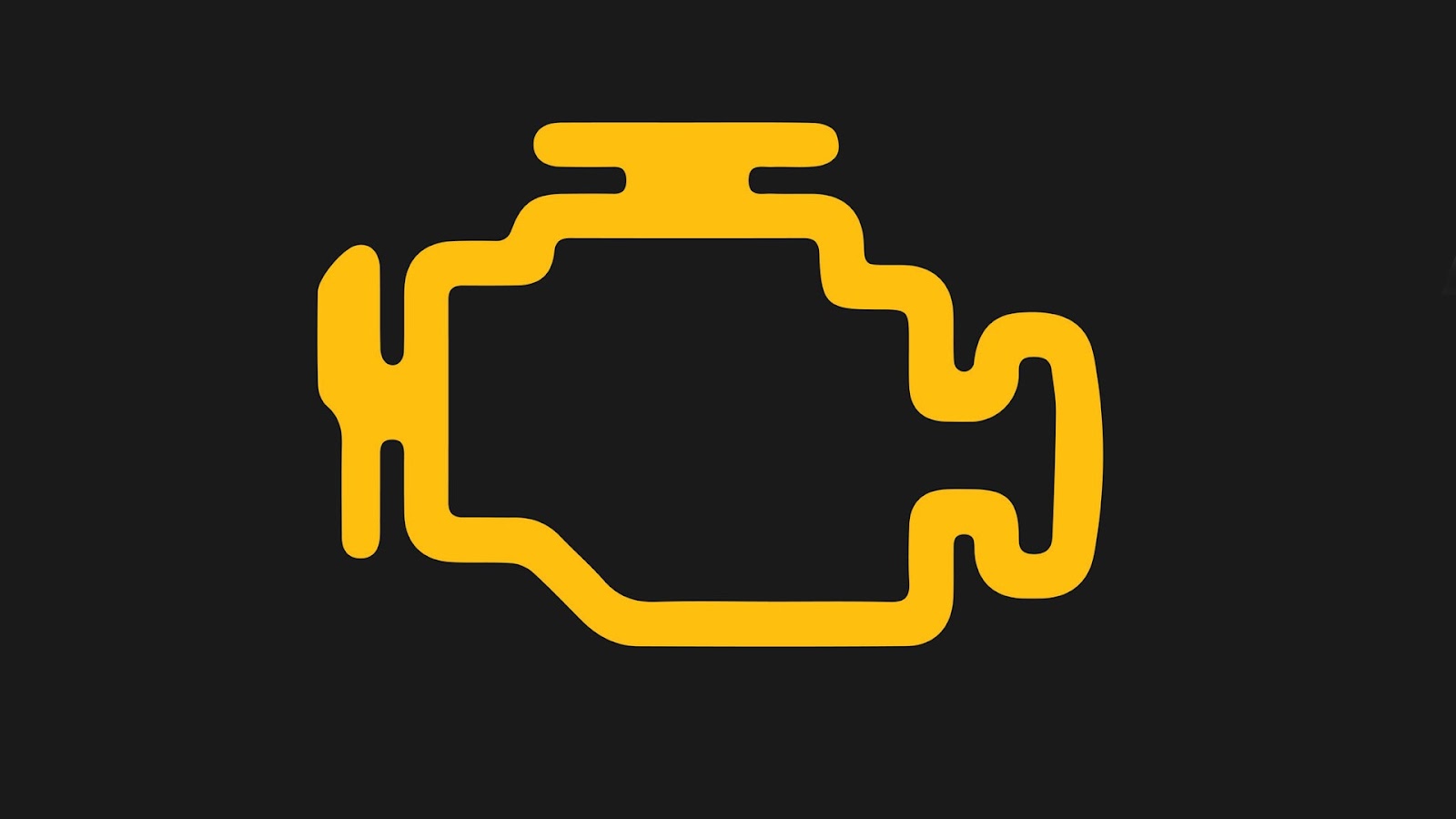

Check Engine Light
When the amber or yellow engine-shaped icon appears, your car’s onboard diagnostics (OBD) system has detected an issue. Common causes include a loose gas cap, faulty oxygen sensor, catalytic converter faults, or misfiring cylinders.
What to do:
-
Tighten the gas cap and see if the light resets.
-
If it stays on, schedule a diagnostic scan with an OBD-II reader.
-
Address any reported faults promptly to prevent reduced fuel economy or engine damage.
Battery/Charging System Warning
A battery icon signals a problem in your charging circuit—often a failing alternator, loose drive belt, or corroded battery terminals.
What to do:
-
Pull over safely and turn off non-essential electronics.
-
Have your alternator and battery tested immediately.
-
Replace worn belts or battery as needed to avoid a dead engine.
Oil Pressure Warning
Resembling a dripping oil can, this red light warns that oil pressure is low. Without sufficient pressure, engine internals can grind and seize.
What to do:
-
Stop driving immediately and shut off the engine.
-
Check oil level and top up if low (use the correct grade).
-
If oil level is fine, have the oil pump and pressure sensor inspected before restarting.
Engine Temperature Warning
A thermometer or wavy-lines icon means coolant temperature is too high or coolant level is critically low.
What to do:
-
Pull over and let the engine cool for at least 15–20 minutes.
-
Check the coolant reservoir; add the proper coolant mix if low.
-
Inspect for leaks, radiator blockages, or a failing thermostat.
Brake System Warning
An exclamation point inside a circle (or the word “BRAKE”) indicates low brake fluid, worn pads, or a hydraulic issue. Driving with compromised brakes is extremely dangerous.
What to do:
-
Test pedal firmness—if it feels soft or sinks, stop driving and call for assistance.
-
Check the brake-fluid reservoir; top up only with manufacturer-specified fluid.
-
Have brake lines and pads inspected immediately.
ABS Warning Light
Labeled “ABS,” this warns that the anti-lock braking system isn’t working. You still have conventional braking, but wheels may lock under hard stops.
What to do:
-
Drive cautiously—ABS helps maintain steering control in emergencies.
-
Have ABS sensors and the control module checked by a qualified technician.
Tire Pressure Monitoring System (TPMS)
An exclamation point inside a horseshoe shape means one or more tires are underinflated. Low pressure affects handling, fuel economy, and tire life.
What to do:
-
Stop safely and measure each tire’s pressure.
-
Inflate to the manufacturer’s recommended PSI (found on the driver’s door jamb).
-
Inspect for punctures if any tire repeatedly loses pressure.
Airbag/SRS Warning Light
A seated figure with a circle represents your Supplemental Restraint System (SRS). If illuminated, airbags or seat-belt pre-tensioners may not deploy in a crash.
What to do:
-
Avoid DIY fixes—airbag systems require professional calibration.
-
Have the SRS control module and sensors inspected immediately.

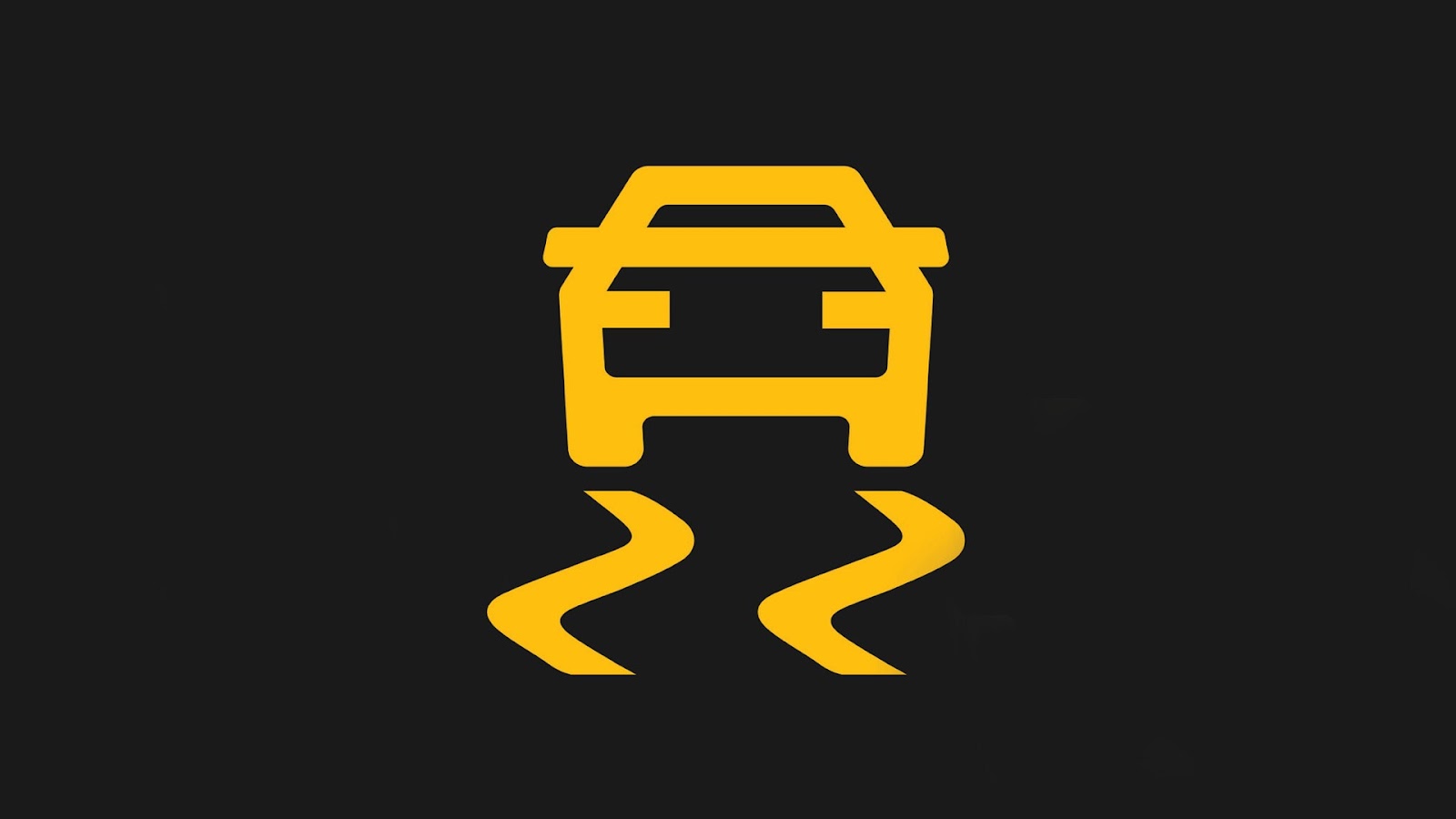

Traction/Stability Control Warning
A car with skid marks indicates your traction or stability control is deactivated or faulty. These systems help prevent slides in poor conditions.
What to do:
-
If you switched it off manually, turn it back on.
-
Otherwise, get wheel-speed sensors and the control module checked.
Fog Lights Indicator
Not a malfunction light, but an icon showing front or rear fog lamps are on. Leaving them on in clear conditions can blind other drivers.
What to do:
-
Turn off fog lights when visibility improves.
-
Use them only in fog, heavy rain, or snow.
Low Fuel Warning
A gas-pump icon warns your tank is nearing reserve. Running out of fuel can damage the fuel pump and leave you stranded.
What to do:
-
Refuel at the next safe opportunity—ideally above the reserve mark.
-
Avoid habitually driving on the warning level.

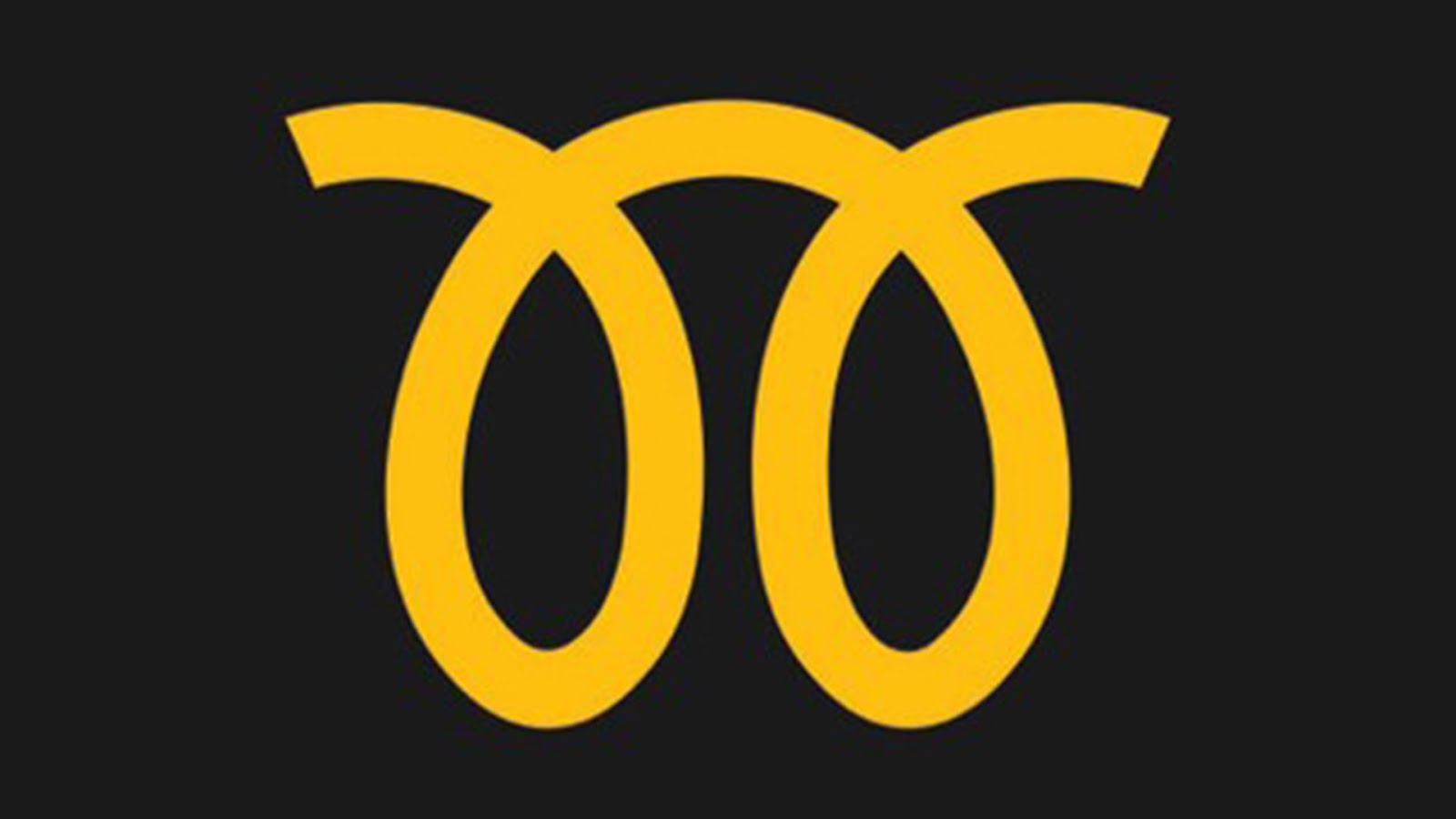

Diesel Glow Plug Indicator
Specific to diesel engines, this coiled icon means glow plugs are heating cylinder heads for a smooth start—wait until it goes off before cranking. A blinking light signals a glow-plug fault.
What to do:
-
On start-up, wait for the indicator to extinguish.
-
If it blinks or stays lit, replace faulty glow plugs or the control module.
Unlock Gear Selector Light
When you see this green padlock-shaped icon (often overlaid on the PRNDL display), it means the shift-lock interlock is engaged—your car won’t let you move the gear lever out of Park until you press the brake pedal. This safety feature prevents accidental shifting.
What to do:
-
Firmly press and hold the brake pedal, then shift into Drive or Reverse.
-
If the light stays on even with your foot on the brake, have the brake-pedal position switch or shift-lock solenoid inspected by a technician. Failure of these components can leave you unable to shift and drive.
Why Understanding Dashboard Warning Lights Matters
-
Safety: Reacting promptly protects everyone on the road.
-
Cost Savings: Early fixes prevent minor issues from becoming major (and expensive).
-
Reliability: Proper maintenance guided by these lights keeps your car running longer.
-
Peace of Mind: No more guessing games—know exactly what your car is telling you.
Keep your owner’s manual in the glove box—it’s the definitive guide to your vehicle’s unique symbols and reset procedures. Next time a warning light illuminates, you’ll know exactly what action to take for a smooth, safe drive.
